Replacing Fuses

IMPORTANT: When replacing fuses, be sure the replacement fuse has the same fuse rating and is installed in the correct location. Failure to do so could result in damage to the electrical harness and/or electrical components.

NOTE: The fuses are located on the left side of the engine compartment next to the starter.

The electrical operating system has one 20-amp system fuse and models equipped with a lift assist system have an additional 30-amp deck lift fuse.

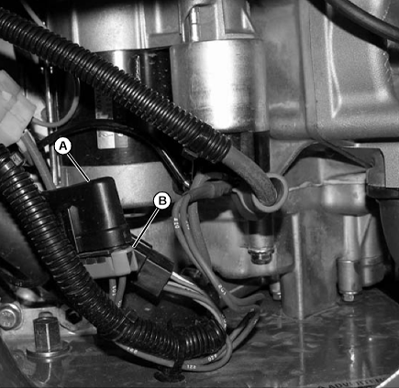

TCAL43570-UN-21MAR13

1. Remove cover (A) from fuse holder (B) and remove fuse.

2. Check metal clip in fuse window and discard fuse if clip is broken.

3. Install new fuse and place cover back onto fuse holder.
