Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

   CAUTION: The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.

   • Lower machine onto jack stands or other stable supports and block wheels before servicing.

   IMPORTANT: Place jack stands under frame, not under transmission or engine, when raising or supporting machine.

2.
   TCAL43578-UN-21MAR13

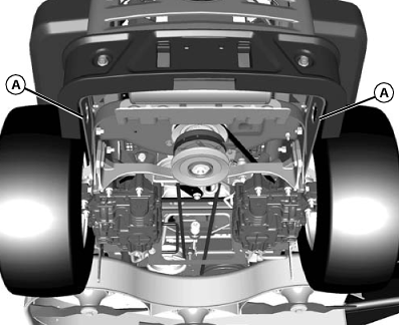

   Safely lift rear of machine at vertical frame points (A). Place jack stands or other stable supports near lift locations.

---




3. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

4.
   TCAL43579-UN-21MAR13

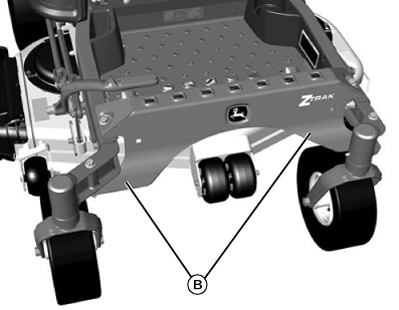

   Safely lift front of machine at bottom of plates (B). Place jack stands or other stable supports near lift locations.

---




5. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

6. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
