Checking ROPS Hardware

1. Park machine safely. (Refer to Parking Safely in the SAFETY section.)

2. NOTE: When tightening ROPS hardware, tighten the bolt head side and not the nut.

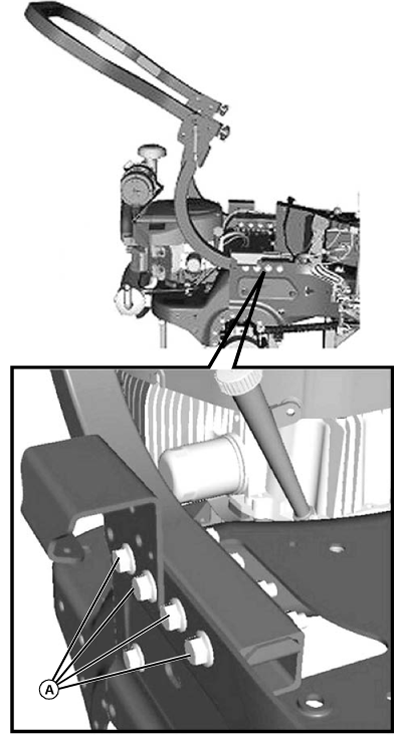

   TCAL43581-UN-21MAR13

   Tighten the four ROPS attaching bolts (A) on each side of ROPS to specification.

   Item	Measurement	Specification
   ROPS Attaching Bolts	Torque	115 N·m (85 lb-ft)

---
