Changing Engine Oil and Filter

CAUTION: Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

IMPORTANT: Change the oil more often if the vehicle is used in extreme conditions:

• Extremely dusty conditions.
• Frequent slow or low-speed operation.
• Frequent short trips.

Kohler Engines

1. Run engine to warm oil.

2. Park machine safely on a level surface. (See Parking Safely in the SAFETY section.)

3. Remove engine access grill.

4. Put container under oil drain area.

5.

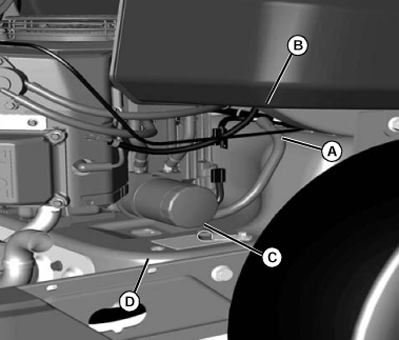

   TCAL43504-UN-21MAR13

   Model Z915B shown.

   Lower hose (A) toward outside of machine frame, and remove plug (B) on end hose. Allow oil to drain into container.

---




6. After oil drains install the drain plug and remove the oil filter (C) and allow oil to drain through opening (D) in frame and into container. Tighten drain plug to specification.

   Item	Measurement	Specification
   Drain Plug	Torque	13.6 N·m (120 lb-in.)

7. Apply a film of clean engine oil on gasket of new filter.

8. Install filter. Turn filter clockwise until gasket makes contact with mounting surface. Tighten by hand 3/4 turn more after gasket contact.

9.

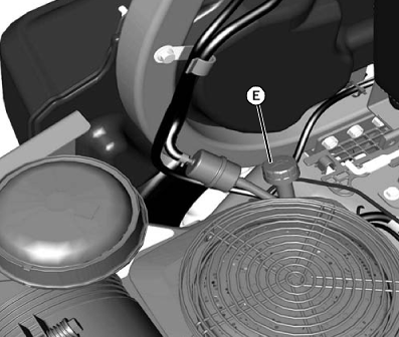

   TCAL43505-UN-21MAR13

   Clean area around the oil dipstick (E).

---




10. Unscrew and remove the dipstick.

11. Add approximately:

    Model	Engine Oil (with filter)
    Z915B	1.6 - 1.8 L (1.7 - 1.9 qt)
    Z925M (EFI) and Z930M (EFI)	1.9 L (2.0 qt)

12. Install and tighten dipstick.

13. Start engine and run at slow throttle for approximately two minutes. Check for leaks around filter and drain plug.

14. Stop engine.

15. Check oil level:

    • Remove and wipe dipstick clean with a rag.
    • Install dipstick but do not screw onto threads.
    • Remove dipstick. Check oil level on dipstick; oil level should be between the ADD and FULL marks. Add or remove oil if needed.



16. Install dipstick and tighten.

17. Install engine access grill.

Kawasaki Engines

1. Run engine to warm oil.

2. Park machine safely on a level surface. (See Parking Safely in the SAFETY section.)

3. Remove engine access grill.

4. Put container under oil drain area.

5.

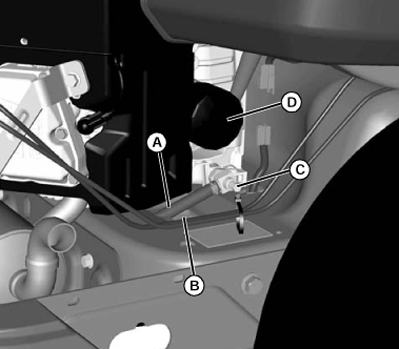

   TCAL43506-UN-21MAR13

   Model Z920M shown.

   Be certain hose (A) is installed into opening (B) in machine frame, and open oil drain plug valve (C). Allow oil to drain into container.

---




6. After oil drains close the drain plug and remove the oil filter (D). Tighten drain plug to specification.

   Item	Measurement	Specification
   Drain Plug	Torque	6.9 N·m (61 lb-in)

7. Apply a film of clean engine oil on gasket of new filter.

8. Install filter. Turn filter clockwise until gasket makes contact with mounting surface. Tighten by hand 3/4 turn more after gasket contact.

9.

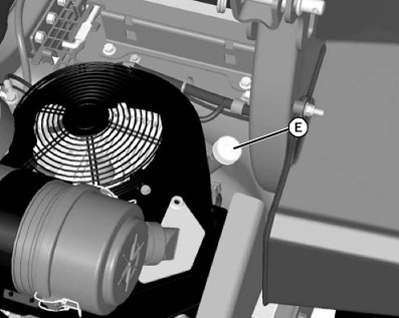

   TCAL43507-UN-21MAR13

   Clean area around the oil dipstick (E).

---




10. Unscrew and remove the dipstick.

11. Add approximately:

    Model	Engine Oil (with filter)
    Z920M, Z920R	2.0 L (2.1 qt)
    Z930M, Z950M, Z930R, Z950R, Z960R, Z970R	2.4 L (2.5 qt)

12. Install and tighten dipstick.

13. Start engine and run at slow throttle for approximately two minutes. Check for leaks around filter and drain plug.

14. Stop engine.

15. Check oil level:

    • Remove and wipe dipstick clean with a rag.
    • Install dipstick but do not screw onto threads.
    • Remove dipstick. Check oil level on dipstick; oil level should be between the ADD and FULL marks. Add or remove oil if needed.



16. Install dipstick and tighten.

17. Install engine access grill.
