Remove Cooling Shroud and Remove Debris (Models Z930M, Z950M, Z930R, Z950R, Z960R, Z970R)

CAUTION: Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.

• Wear eye protection when using compressed air for cleaning purposes.

• Reduce compressed air pressure to 210 kPa (30 psi).

IMPORTANT: To ensure proper cooling, keep the engine cooling fins and surrounding area clean at all times. Operating the engine with obstructed cooling fins could cause engine damage due to overheating.

NOTE: Your model may be different from the model shown.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow machine to cool down.

3. Remove engine access grill.

4.

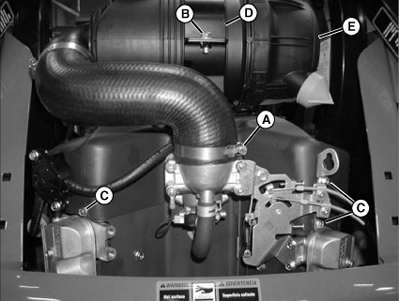

   TCAL43520-UN-21MAR13

   Loosen clamp (A), remove hex head bolts (B) and (C).

---




5. Lift bracket (D) and pivot air cleaner assembly (E) out leaving the intake hose connected.

6.

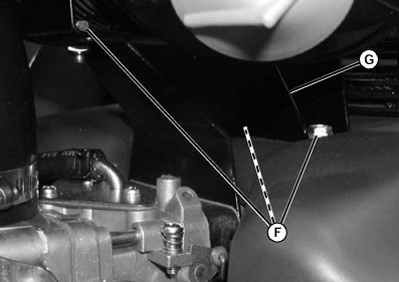

   TCAL43521-UN-21MAR13

   Remove the three hex head bolts (F) and air cleaner bracket (G).

---




7.

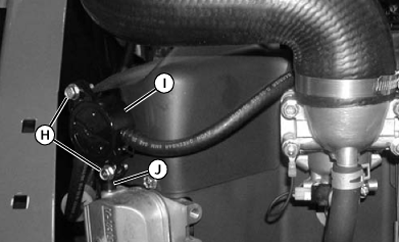

   TCAL43522-UN-21MAR13

   Remove the two hex head bolts (H) fuel pump (I) and disconnect the vacuum hose (J).

---




8.

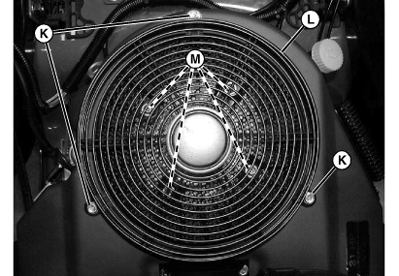

   TCAL43523-UN-21MAR13

   Remove the three hex head bolts (K) and fan shroud (L).

---




9. Remove the four hex socket head bolts (M) and the fan screen.

10.

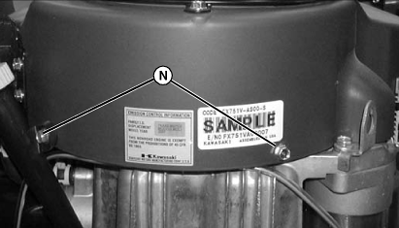

    TCAL43524-UN-21MAR13

    Remove the engine shroud bolts (N).

---




11.

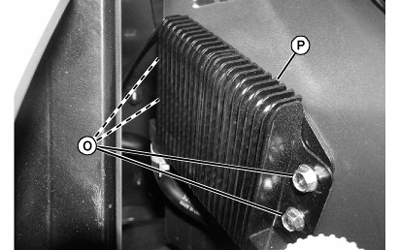

    TCAL43525-UN-21MAR13

    Remove the four hex head bolts (O) and remove oil cooler (P).

---




12. Clean oil cooler fins.

13.

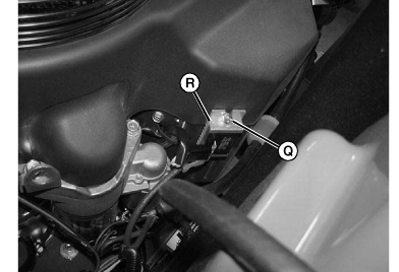

    TCAL43526-UN-21MAR13

    Z930M, Z930R and Z950R: Loosen the top hex head bolts (Q) to the voltage regulator (R).

---




14. Remove the engine shroud.

15. Clean the debris from the engine area and all engine cooling fins.

16. Install engine shroud.

17. Tighten voltage regulator top bolt.

18. Install oil cooler.

19. Install fan shroud.

20. Install fuel pump and connect vacuum hose.

21. Install air cleaner bracket.

22. Pivot air cleaner to proper position and tighten hardware.

23. Install engine access grill.
