Raising and Lowering Operator Seat

Standard Seat

CAUTION: Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

Raising the Seat

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

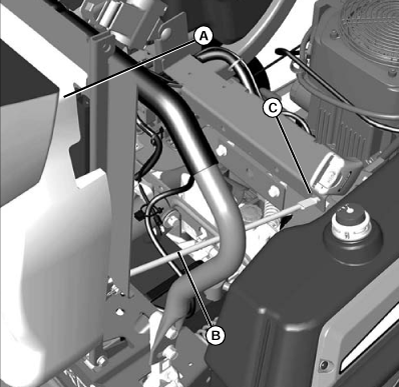

   TCAL43453-UN-21MAR13

   Stand on side of the machine and lift seat (A).

---




3. Slide seat rod (B) through the frame cutout (C).

4. Set the seat rod in the lower cutout of the frame.

Lowering the Seat

1. Stand on the side of the machine.

2. Push seat forward slightly and reset seat rod into the top slide of the frame cutout.

3. Lower seat and return vehicle into service.

Deluxe Seat

CAUTION: Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

Raising the Seat

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

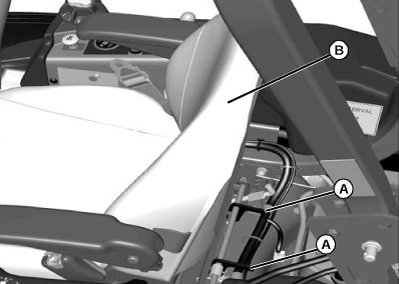

   TCAL43454-UN-21MAR13

   Stand on either side of the machine and pull up on either seat lock latch handle (A) and lift seat (B).

---




3.

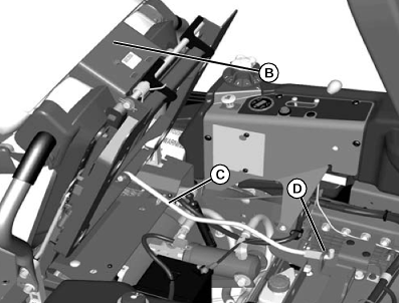

   TCAL43455-UN-21MAR13

   Slide seat rod (C) through the frame cutout (D).

---




4. Set the seat rod in the lower cutout of the frame.

Lowering the Seat

1. Stand on the side of the machine.

2. Push seat forward slightly and reset seat rod into the top slide of the frame cutout.

3. Lower seat. Be sure seat latch is engaged. Return vehicle into service.
