Adjusting Suspension Seat

1. Sit on operator seat.

2.

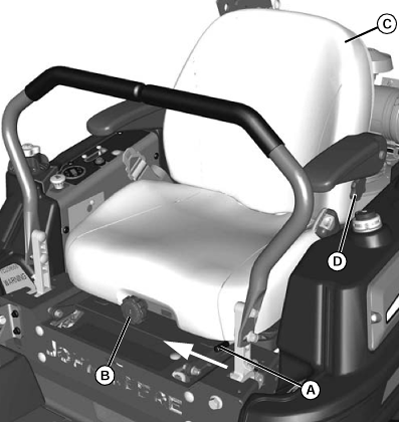

   TCAL43458-UN-21MAR13

   Push and hold the seat adjustment lever (A) toward the middle of the seat.

---




3. Slide forward or backward to desired position.

4. Release lever.

Adjust Ride Comfort

Adjust seat spring tension knob (B) to the weight of the operator, so that the seat “floats” in the center of its travel as the machine traverses rough terrain.

1. Adjust seat suspension.
   • Turn seat spring tension knob (B) to the right (clockwise) for a firmer ride.
   • Gently pull forward or backward on the seat back (C) and turn lever (D) to desired seat back position.
