Adjusting Deluxe Comfort Seat

  1. Sit on operator seat.

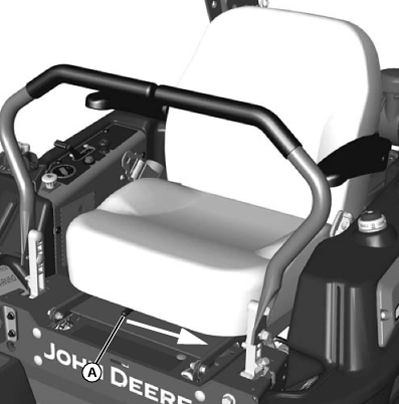

  2. TCAL43457
    TCAL43457-UN-21MAR13

    Push and hold the seat adjustment lever (A) toward the middle of the seat.


  3. Slide forward or backward to desired position.

  4. Release lever.

MX00654,00001CB-19-20131110
