Adjusting Brake

1. NOTE: Make sure reel clutch is disengaged.

   Check operation of park brake (see Testing Park Brake, in Operating section).

2.
   TCT008673-UN-11SEP13

   If adjustment is needed do the following:

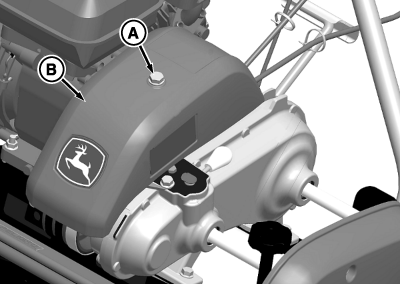

   1. Remove bolt (A) and cover (B).

   ---




   2.
      TCT008674-UN-11SEP13

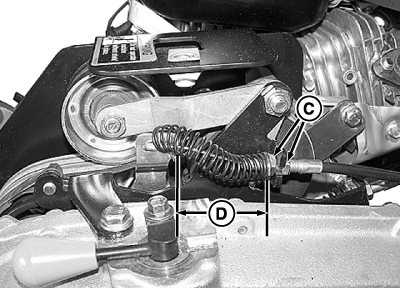

      Loosen jam nuts (C) holding brake cable near the brake.

   3. Shorten ferrule length (D).

   4. Tighten jam nuts (C).

   5. Repeat Step 1.

   6. If still not properly adjusted, replace the brake band.

   7. Install cover and tighten bolt.

---
