Install Throttle Cable

1. On handlebar console, move throttle lever to the slow position.

2. Remove air cleaner assembly.

3.

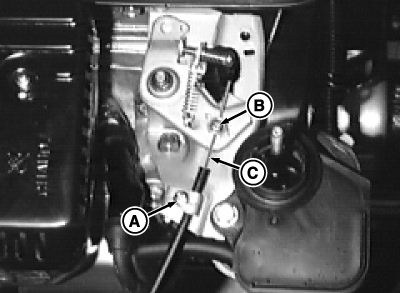

   TCT008675-UN-11SEP13

   On carburetor linkage, loosen screws (A and B).

---




4. Put throttle cable (C) under bracket and screw (A) and through swivel and screw (B).

5. Tighten screws (A and B).

6. On handlebar console, move throttle lever from the slow position to the fast position.

7. Observe carburetor linkage, linkage must travel from slow idle stop to full throttle.

8. If necessary, loosen both screws, reposition throttle cable and tighten screws.

9. Repeat steps 6 - 8 until carburetor linkage has full travel between the slow idle stop to full throttle.

10. Install air cleaner assembly.
