Install Run Switch Cable

TCT008676-UN-11SEP13

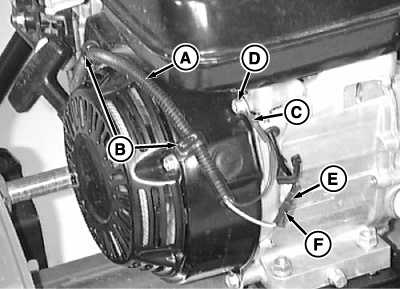

• Route wiring harness (A) over recoil starter.
• Bend tabs (B) to hold harness.
• Attach run\off switch ground wire (C) with bolt (D).
• Put male end of connector (F) into female end of connector (E).
