Install Transport Wheels (Optional)

  1. Raise machine on kick stand.

  2. TCT008683
    TCT008683-UN-11SEP13

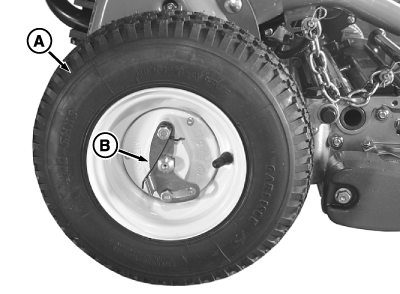

    Slide transport wheel (A) on axle shaft.


  3. Engage lock plate (B) in groove on axle shaft.

  4. Repeat previous two steps to install second transport wheel.

  5. Lower machine.

  6. Adjust tire pressure as required, not exceeding recommended pressure. (See Specifications Section for correct tire pressures.)

OUMX068,00001C4-19-20130912
