Engine Break-In

CAUTION: Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

• Move the machine to an outside area before running the engine.

• Do not run an engine in an enclosed area without adequate ventilation.

• Connect a pipe extension to the engine exhaust pipe to direct the exhaust fumes out of the area.

• Allow fresh outside air into the work area to clear the exhaust fumes out.

IMPORTANT: Avoid damage! Break in engine before using machine.

Advise customer to follow this engine break-in procedure.

1.
   TCT008684-UN-11SEP13

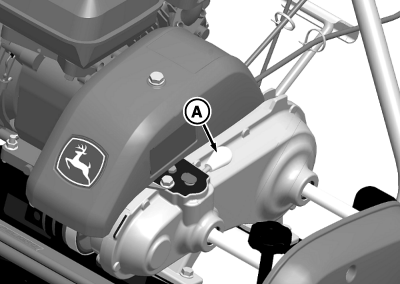

   Reel clutch handle (A) should be in the stop position (handle toward the rear as shown).

---




2. Start engine, and allow to run and warm up for 15 minutes at 1/2—3/4 throttle before applying load.
