Adjusting Bedknife-To-Reel

CAUTION: Avoid injury! Blades are sharp. Always wear gloves when handling blades or working near blades.

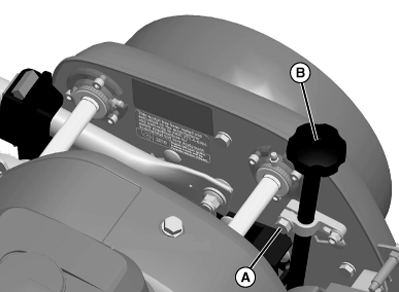

TCAL41602-UN-22JAN13

1. To adjust clearance between knife and reel blades, loosen clamp bolt (A).

2. NOTE: Reel must turn freely by hand.

   Turn adjusting knob (B) clockwise to decrease clearance. Turn adjusting knob counterclockwise to increase clearance.

3.

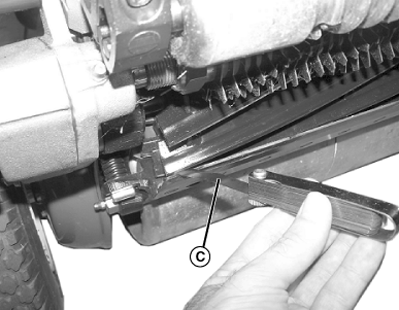

   TCAL41603-UN-22JAN13

   Adjust ends of reel to specifications with feeler gauge (C).

   Item	Measurement	Specification
   Bedknife-to-Reel Clearance (Ends)	Gap	0.001 in.

---




4. Now inspect the entire length of the bedknife with a 0.002 in.feeler gauge. It should not go in anywhere if it does, go to step 7.

5. If the reel is contacting anywhere, go to Step 6.

6. NOTE: Always rotate the reel in the reverse direction to avoid damaging or dulling the cutting edges of the reel or bedknife.

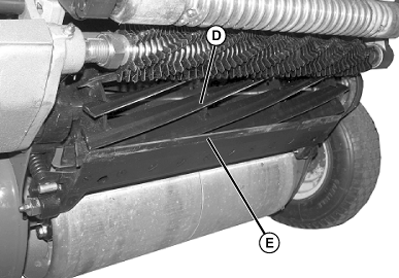

   TCAL41604-UN-22JAN13

   Slowly rotate the reel (D) backwards watching for contact between the reel and bedknife (E) at the center of the bedknife. If contact is made, backlap the reel and bedknife to eliminate the “Frown” in the bedknife or the out-of-round condition of the reel.

---




7. Measure the clearance at the center of the bedknife. If the clearance exceeds specifications, backlap the reel and bedknife to eliminate the “Smile” in the bedknife or the out-of-round condition of the reel.

   Item	Measurement	Specification
   Bedknife-to-Reel Clearance (Center)	Gap	0.002 in.

8. NOTE: Do not overtighten knife to reel. Overtightening can cause damage to knife or cutting edges.


   TCAL41605-UN-22JAN13

   Tighten clamp bolt (A) on both sides.

---
