Adjusting Greens Tender Conditioner (GTC) Or Rotary Brush

CAUTION: Avoid injury! Blades are sharp and rotate quickly:

• Keeps hands and feet away from cutting units while machine is running.
• Always wear gloves while working on cutting units.
• Watch for rotation of cutting reel. Rotating one cutting reel can cause another blade or cutting reel to rotate.

1.
   TCAL41619-UN-22JAN13

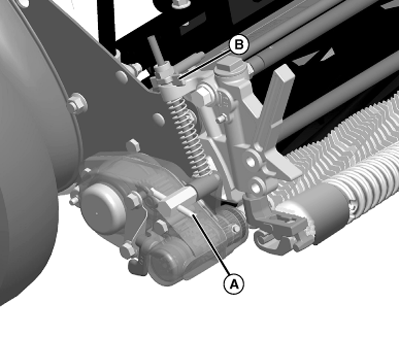

   Loosen T-handles (A) on both sides of cutting unit.

---




2. Rotate wing nuts (B) on both sides of cutting unit to lower GTC or Rotary Brush shaft.

3.
   TCAL41620-UN-22JAN13

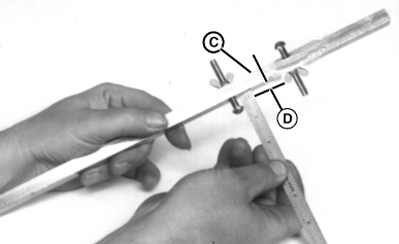

   Measure from underside of screw head to top of gauge (C). This is the cutting height (D).

---




4.
   TCAL41621-UN-22JAN13

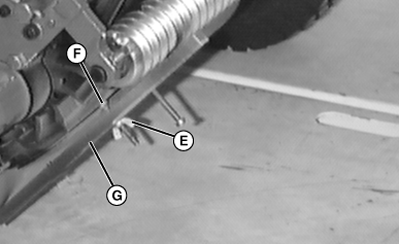

   Loosen wing nut (E) and adjust screw (F) to specifications.

   Item	Measurement	Specification
   Greens Tender Conditioner-to-Bedknife	Height	1/32 in. (1 mm) Below Cutting Height
   Rotary Brush-to-Bedknife	Height	1/32 in. (1 mm) Above Cutting Height

---




5. Place gauge (G) against bottom of front and rear rollers and bedknife cutting surface.

6.
   TCAL41622-UN-22JAN13

   Rotate locknuts (H) on both sides of cutting unit to evenly raise or lower height of GTC or Rotary Brush shaft until desired height is achieved.

---




7. Rotate wing nuts (B) on both sides of cutting unit to raise GTC or Rotary Brush shaft.

8. Tighten T-handles (A) on both sides of cutting unit.

   NOTE: If brush or cutter is not adjusted correctly, lower engine rpm or the machine pulling to one side can be expected.
