Removing And Installing Bedknife And Shoe

  1. TCAL41673
    TCAL41673-UN-22JAN13

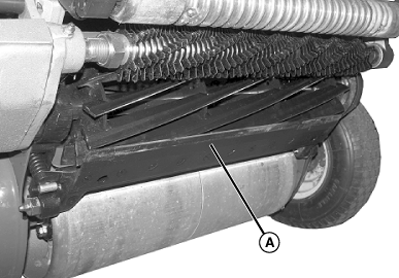

    Remove all bedknife screws and bedknife (A).


  2. Install bedknife and new screws. Alternate tightening by starting with center screw.

  3. Adjust bedknife to reel.

  4. Backlap cutting reel.

OUMX068,0000E93-19-20151027
