Grinding the Bedknife

NOTE: bedknife and support assembly must be ground as a complete unit.

  1. TCAL41674
    TCAL41674-UN-22JAN13

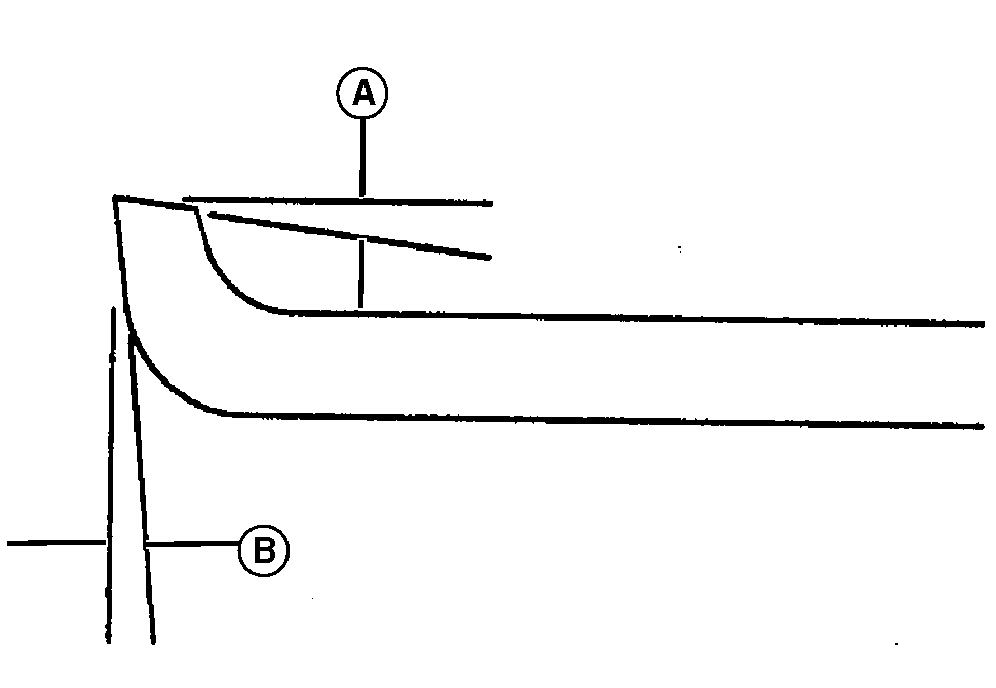

    When grinding the bedknife, it is important that the relief angles on the top surface (A) and on the front surface (B) meet specifications.

    ItemMeasurementSpecification
    Bedknife Relief Angle (Top Surface)Angle6.5°

    ItemMeasurementSpecification
    Bedknife Relief Angle (Front Surface)Angle15°


  2. Put entire bedknife support and bedknife in a suitable grinder and grind until material is consistently removed from the entire length of the top and front surfaces of the bedknife.

OUMX068,0000E94-19-20151027
