Adjusting Handlebar

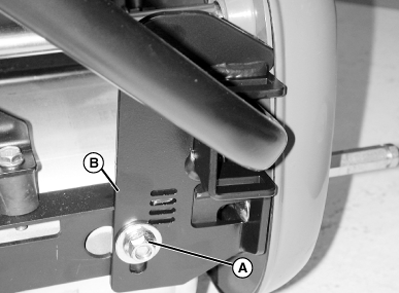

NOTE: Make sure bracket (B) is straight up and down, and not at an angle.

TCAL41593
TCAL41593-UN-22JAN13

  1. Loosen nut (A) on each side of machine.

  2. Position handlebar to desired position and tighten nut (A).

OUO1082,00063F8-19-20130215
