Removing Transport Wheels

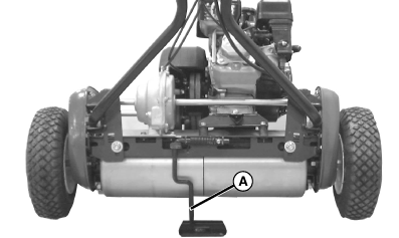

TCAL41595
TCAL41595-UN-22JAN13

  1. Place machine on stand (A).

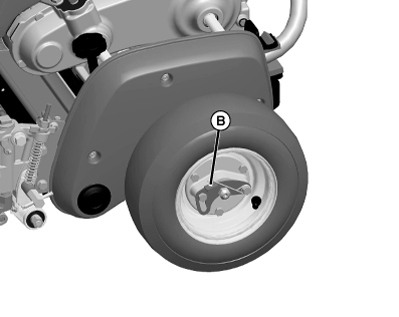

  2. TCAL41596
    TCAL41596-UN-22JAN13

    Release latch (B) and slide wheel from shaft. Repeat procedure for other side.

OUO1082,00063FB-19-20130215
