Transporting Machine on Trailer

Be sure that trailer has all the necessary lights and signs required by law.

CAUTION: Avoid injury! Use extra care when loading or unloading the machine into a trailer or truck.

Close fuel shutoff valve, if your machine is equipped.

NOTE: Trailer capacity must exceed combined machine weight and attachment weight. (See Specifications section in operator’s manual.)

  1. Park trailer on a level surface.

  2. Move forward onto heavy-duty trailer.

  3. Lock park brake.

  4. Turn off machine.

  5. Machines with fuel shutoff: Turn fuel shutoff to off position.

  6. TCAL41600
    TCAL41600-UN-22JAN13

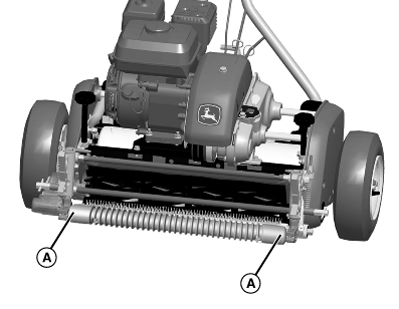

    Fasten front of machine at both sides of the front roller at points (A) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.


  7. TCAL41601
    TCAL41601-UN-22JAN13

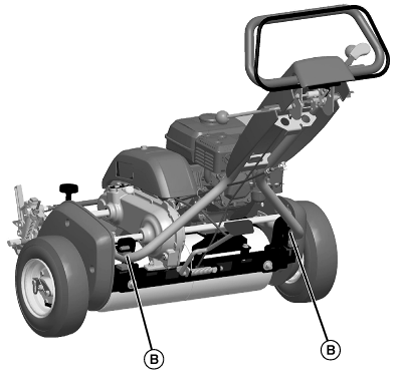

    Fasten rear of machine at both sides of the handlebars at points (B) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

OUO1082,0006402-19-20150629
