Operating Turf Broom

1.

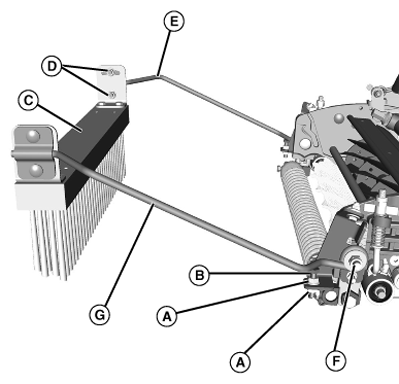

   TCAL41626-UN-22JAN13

   Adjust broom:
   • To adjust broom height, loosen two jam nuts (A) and rotate bolt (B) until desired broom height is achieved. Repeat on opposite side. Tighten jam nuts to secure broom position.
   • To adjust broom (C) angle, loosen two nuts (D) on each side, and rotate broom on brackets (E). Tighten two nuts to secure position.



---




2. To remove broom, remove locknut (F), spacer, and carriage bolt, and remove broom with brackets (G) from reel.
