Transmission and Hydraulic Oil

IMPORTANT: Avoid damage! Machine is filled with Hy-Gard™(J20C) Transmission/Hydraulic Oil at the factory. DO NOT mix oils. DO NOT use type “F” automatic transmission fluid.

TCAL41627-UN-22JAN13

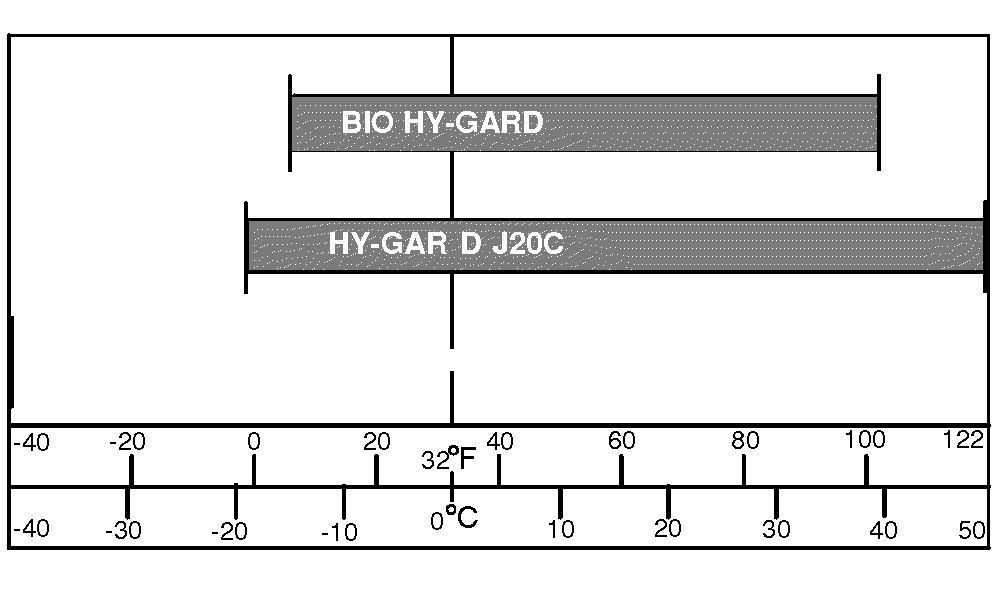

Use oil viscosity based on the expected air temperature range during the period between oil changes.

John Deere J20C Hy-Gard™ Transmission/Hydraulic Oil is recommended.

Use John Deere Bio Hy-Gard™ oil when a biodegradable fluid is required.
