Lubricating Input Drives

  1. TCAL41631
    TCAL41631-UN-22JAN13

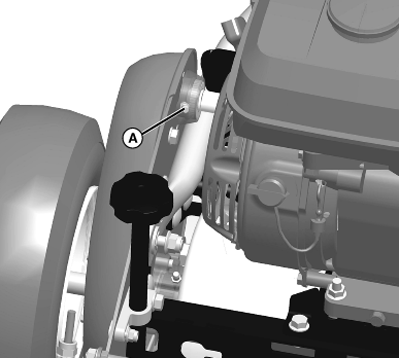

    Lubricate input drive to ground (right-hand side) drive chain at point (A) with John Deere Multi-Purpose SD Polyurea Grease or Equivalent SAE Multipurpose Grease.


  2. TCAL41632
    TCAL41632-UN-22JAN13

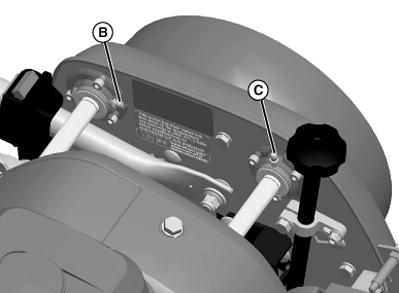

    Lubricate input drive to ground (left-hand side) drive chain at point (B) with John Deere Multi-Purpose SD Polyurea Grease or Equivalent SAE Multipurpose Grease.


  3. Lubricate input drive to reel drive chain at point (C) with John Deere Multi-Purpose SD Polyurea Grease or equivalent SAE multipurpose grease.

OUO1082,000641F-19-20130215
