Lubricating Drive Roller

TCAL41634-UN-22JAN13

TCAL41635-UN-22JAN13

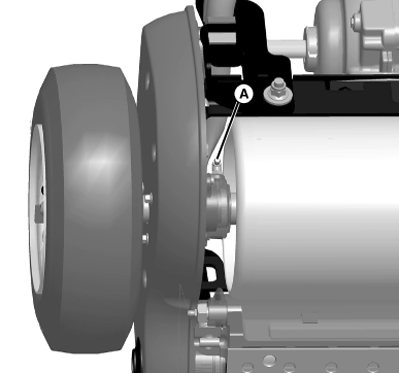

View from under mower.

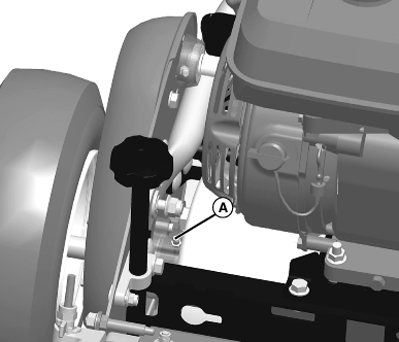

Lubricate drive roller at points (A) with John Deere Multi-Purpose SD Polyurea Grease or equivalent SAE multipurpose grease.
