Checking and Filling Gear Case

NOTE: Change gearcase oil after first 50 hours of operation.

1.

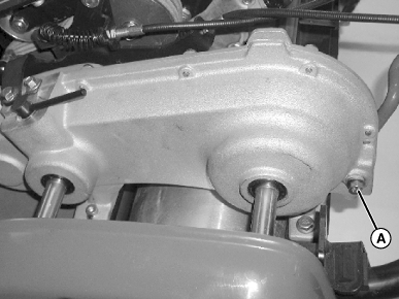

   TCAL41636-UN-22JAN13

   Put block under front roller to level machine.

---




2. Remove drain plug (A) and oil should be at the bottom of drain hole.

3. Check level of lubricant.

4. Refill to specifications using John Deere Hy-Gard Oil.

   Item	Measurement	Specification
   Gear Case	Capacity	0.4 qt (0.4 L)

5. Remove belt cover.

6.

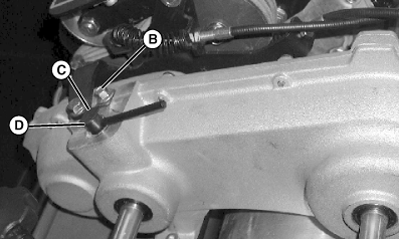

   TCAL41637-UN-22JAN13

   Loosen spring bolt (B).

---




7. Rotate spring (C) out of the way.

8. Remove handle (D) and fill.

9. Install in reverse order of removal.
