Adjusting Throttle Lever Location

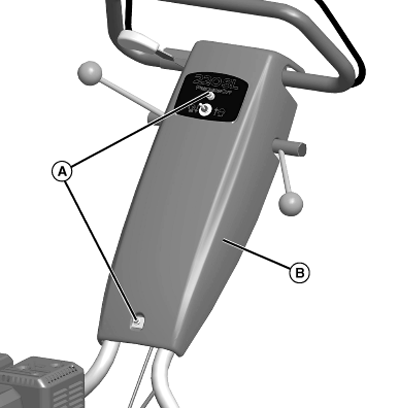

  1. TCAL41643
    TCAL41643-UN-22JAN13

    Remove two hex head bolts (A).


  2. Remove handlebar cover (B).

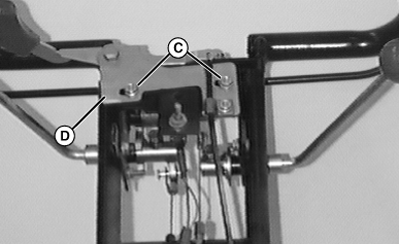

  3. TCAL41644
    TCAL41644-UN-22JAN13

    Loosen two nuts (C).


  4. Move throttle lever plate (D) to where the throttle lever location is most comfortable for the operator.

  5. Tighten nuts.

  6. Install handlebar cover with two bolts and tighten.

OUO1082,000642C-19-20130215
