Adjusting Throttle Lever Tension

1.

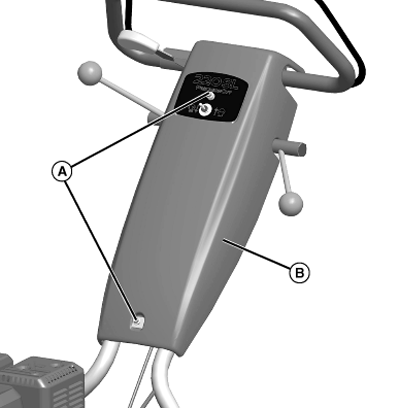

   TCAL41645-UN-22JAN13

   Remove two hex head bolts (A).

---




2. Remove handlebar cover (B).

3.

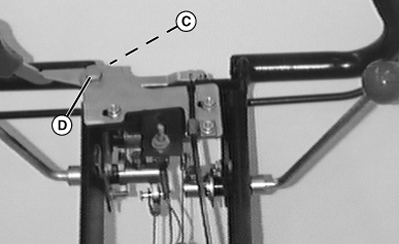

   TCAL41646-UN-22JAN13

   Using two wrenches, tighten or loosen the lock nut (C) on the throttle pivot bolt (D). At the proper tension, the throttle lever is easy to move, yet maintains the desired throttle setting during operation.

---




4. Install handlebar cover with two bolts and tighten.
