Changing Engine Oil

1. NOTE: Change engine oil after first 20 hours of operation, then every 50 hours. Check and fill plugs are located in front and rear of machine.

   Run engine a few minutes to warm oil.

2. Be sure engine is in a level (horizontal) position, if necessary, put a block under front roller to level engine.

3. Stop engine.

4.

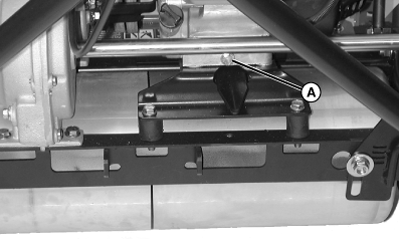

   TCAL41651-UN-22JAN13

   Remove drain plug (A) and drain oil into container.

---




5. Install drain plug.

6.

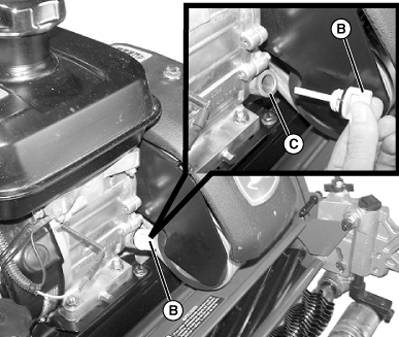

   TCAL41652-UN-22JAN13

   Remove dipstick (B), and wipe clean.

---




7. Add specified amount of oil to full level (C). Do not overfill. (See Checking Oil Level).

   Item	Measurement	Specification
   Engine Oil	Capacity	0.63 qt (0.6 L)

8. Wipe any spilled oil off mower.
