Removing Drive Belts

  1. TCAL41655
    TCAL41655-UN-22JAN13

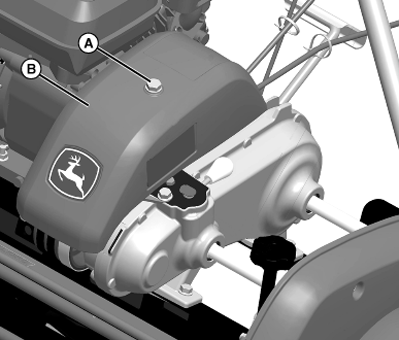

    Loosen bolt (A) and cover (B).


  2. TCAL41656
    TCAL41656-UN-22JAN13

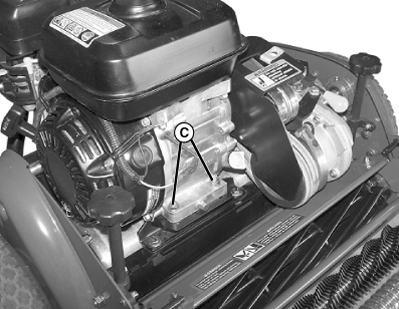

    Loosen two nuts (C) and bolts (on front of engine).


  3. TCAL41657
    TCAL41657-UN-22JAN13

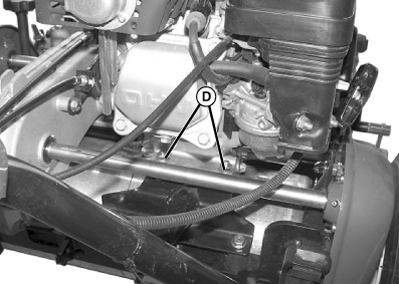

    Loosen two nuts (D) and bolts (on back of engine).


  4. TCAL41658
    TCAL41658-UN-22JAN13

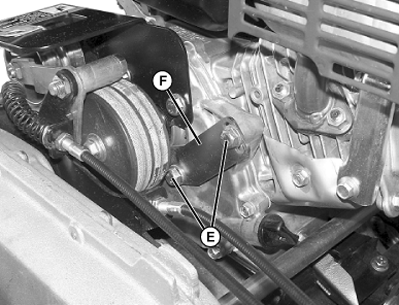

    Loosen two bolts (E) securing the belt guide (F).


  5. Move engine forward and remove belts.
