Adjusting Belt Guide

1. Stop engine and wait for all moving parts to stop rotating.

2.

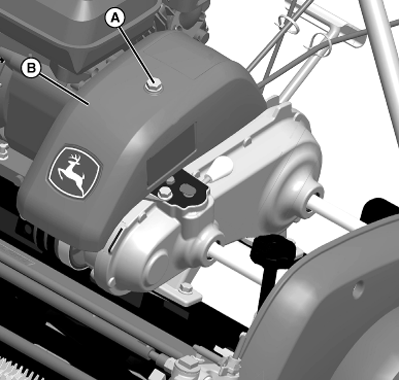

   TCAL41668-UN-22JAN13

   Remove bolt (A) and belt cover (B).

---




3. Make sure drive belts are properly tensioned.

4. Move travel clutch lever forward to the engage position.

5.

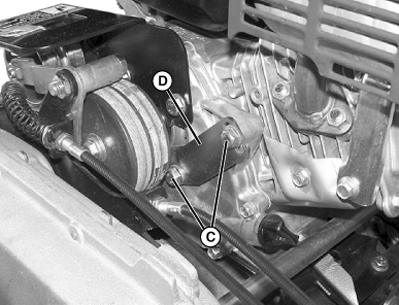

   TCAL41669-UN-22JAN13

   Adjust belt guide:
   • Loosen two bolts (C).
   • Adjust belt guide (D) until clearance between drive belts and guide meets specifications.

     Item	Measurement	Specification
     Drive Belt-to-Guide	Clearance	0.040 in. (1 mm)

   • Tighten bolts (C).
   • Disengage clutch lever.
   • Install belt cover.



---
