Adjusting Reel Shield

1.

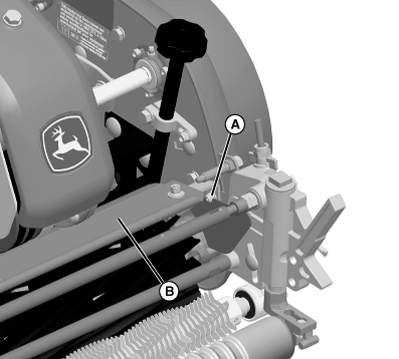

   TCAL41680-UN-22JAN13

   Loosen nuts (A) on both sides.

---




2. Rotate shield (B) to achieve specified clearance between edge of reel blades and bottom of shield.

   Item	Measurement	Specification
   Reel Blade-to-Shield	Clearance	0.06 - 0.10 in. (1.5 - 2.5 mm)

3. Tighten nuts on both sides.
