Adjusting Seat

  1. Sit on operator’s seat.

  2. TCAL43737
    TCAL43737-UN-21MAR13

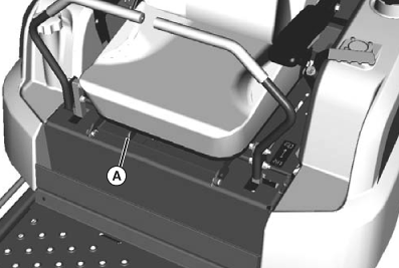

    Push and hold the seat adjustment lever (A) toward the middle of the seat.


  3. Slide forward or backward to desired position.

  4. Release lever.

DK75838,00006B6-19-20130322
