Using Controls


Electric Deck Lift

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. TCAL43742
    TCAL43742-UN-21MAR13

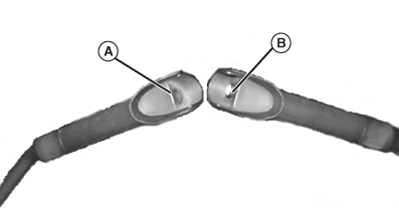

    Push button (A) on left motion control lever to raise mower deck.



PTO Shut Off

NOTE: Once PTO has been shut off using the button the PTO switch must be pushed down and pulled up again to engage PTO.

  • Push button (B) on right motion control lever to shut off PTO.

DK75838,00006B9-19-20130322
