Adjusting Front Caster Spindle Bearing

NOTE: Adjustment required only if front caster wheel vibrates during travel.

  1. Park machine safely. (Refer to Parking Safely in the Safety section.)

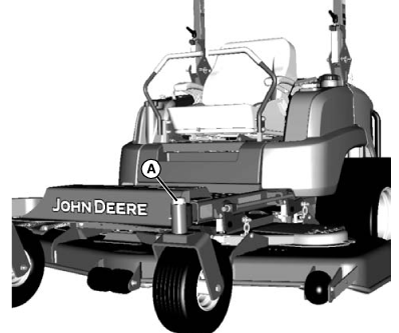

  2. TCAL43818
    TCAL43818-UN-21MAR13

    Remove dust cover (A) from top of spindle.


  3. Remove cotter pin.

  4. Turn castle nut 1/4 turn clockwise.

  5. Replace cotter pin. Do not loosen the castlenut to align cotter pin hole, increase the tightening to align.

  6. Replace dust cover.

  7. Test machine to determine if vibration is still present. Repeat adjustment as necessary.
