Checking and Adjusting Motion Control Levers Gap


Checking Alignment

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

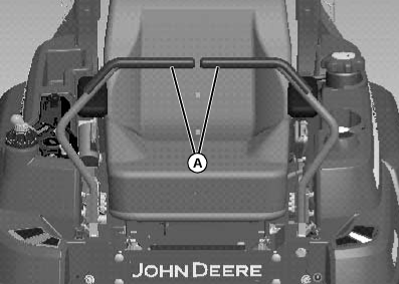

  2. TCAL43824
    TCAL43824-UN-21MAR13

    Move motion control levers (A) inward to neutral position.


  3. If the ends of the levers strike against each other while in the neutral position an adjustment is needed.


Adjustment Procedure

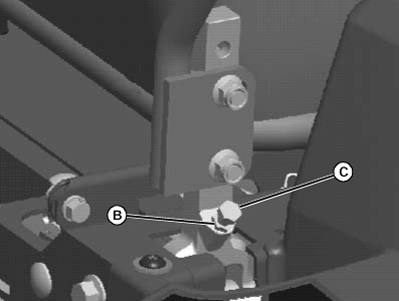

TCAL43825
TCAL43825-UN-21MAR13

  1. Loosen jam nuts (B).

  2. Tighten left and right adjustment bolts (C) slightly to increase gap between handles. The recommended gap between handles is 5-10 mm (0.2-0.4 in.)

  3. Tighten jam nuts to hold adjustment bolts in place.

DK75838,000070A-19-20130322
