Replacing Fuses and Relays

IMPORTANT: Help prevent machine circuit damage. Make sure replacement fuse is the correct size.

1. Open hood.

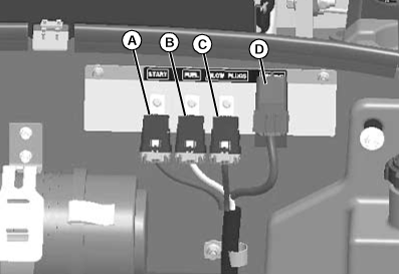

   TCAL43856-UN-21MAR13

---




2.

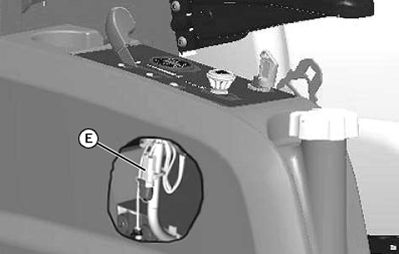

   TCAL43857-UN-21MAR13

   Diode pack located under console cover.

   E - Diode Pack

   Locate and replace defective fuses or relays.
   • Remove relay, fuse block or diode pack.
   • Push in relay, fuse block or diode pack.



---

Relays, Fuse and Diode Block, Diode Pack Identification

• A = Start Relay
• B = Fuel Solenoid Relay
• C = Glow Plug Relay
• D = Fuse and Diode Block
• E = Diode Pack
