Electronic Control Module

TCT011219-UN-04JUN14

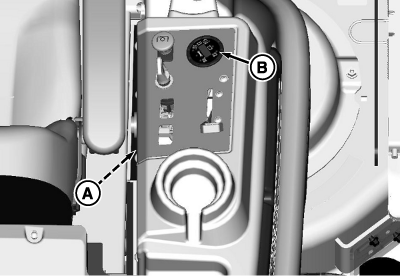

This machine is equipped with an electronic control module located behind the control panel (A). The module controls and monitors all safety interlock functions and the engine glow plug function. The module relays information as codes through an indicator light (B) on the console. (See Using Indicator Lights and Diagnostics in this section.)
