Adjusting Mower Deck Cutting Height

• The mower deck height adjustment consists of fifteen different cutting heights. The fifteen cutting heights range from 38–127 mm (1-1/2–5 in.) in 6.3 mm (1/4 in.) increments.
• Cutting height levels can be adjusted without leaving the seat.

Cutting Height Adjustment Procedure

1. Park machine on a hard, level surface.

2. Disengage PTO.

3.

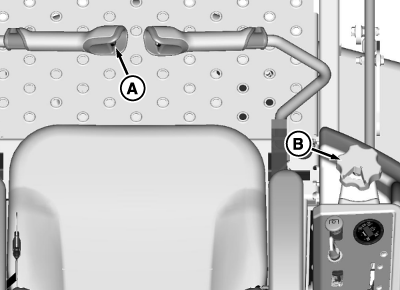

   TCT011220-UN-04JUN14

   Press the deck lift switch (A) on the left motion control lever and hold it down. If deck lift switch is held down longer than 20 seconds, it will time out and release.

---




4. Turn height-of-cut knob (B) to the desired setting.

5. Release deck lift switch.
