Engaging Mower

CAUTION: Avoid injury! Clear mowing area of all bystanders when operating this machine. Thrown objects could cause serious injury or death.

Keep hands and feet away from blades and discharge opening.

Do not mow in reverse unless absolutely necessary.

  1. Start engine.

  2. TCT011408
    TCT011408-UN-04JUN14

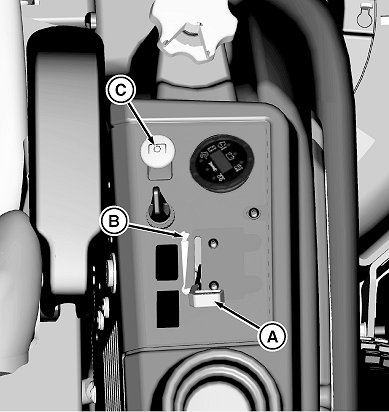

    Move throttle lever (A) to full throttle (B).


  3. Unlock park brake.

  4. Move both motion control levers to the neutral position.

  5. Pull PTO knob (C) up to engage mower deck.

  6. Push motion control levers forward slowly. Mow at a safe travel speed.

NOTE: Press the PTO shut-off switch in the right motion control lever handle or push the PTO knob (C) down to disengage mower deck.

OUMX068,00007F3-19-20140604
