Using Fuel Shut Off Valve

  1. Lift and secure operator seat platform in the raised position.

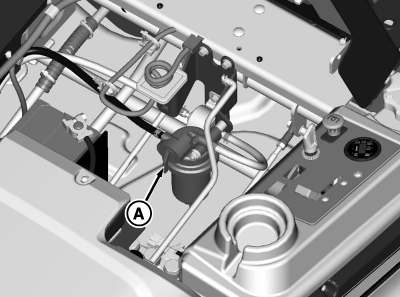

  2. TCT011409
    TCT011409-UN-04JUN14

    Locate the fuel shutoff valve (A):

    • To open the fuel shutoff valve, turn the handle so the pointer is facing down (vertical), as shown above.
    • To close the fuel shutoff valve, turn the handle so it is pointing horizontal.


OUMX068,00007F4-19-20140604
