Lubricating Mower Deck Spindles

NOTE: Removal of the belt shields is not necessary to lubricate the spindles.

•
  TCT011470-UN-29JUL14

  Picture Note: 60 in. side discharge shown.


  TCT011471-UN-29JUL14

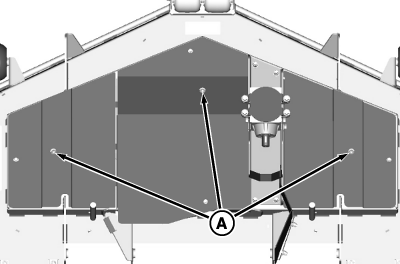

  Picture Note: 60 in. rear discharge shown.

  Lubricate mower deck spindle grease fittings (A).

---
