Removing and Installing Foot Plate

CAUTION: Avoid injury! Always operate the mower with the foot plate installed. Operating with the foot plate removed can cause serious injury.

Removing Foot Plate

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

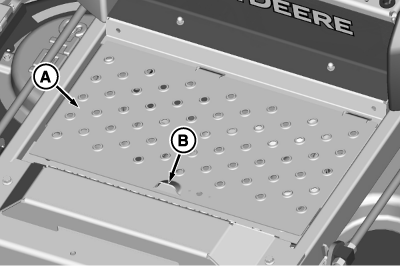

   TCT011549-UN-29JUL14

   Pull foot plate (A) up using handle (B).

---




3.

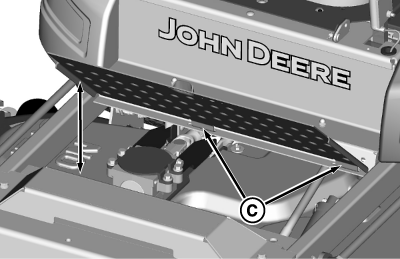

   TCT011550-UN-29JUL14

   Lift foot plate in the direction shown to disengage hinge tabs (C) from holes in the frame.

---




4. Remove foot plate.

Installing Foot Plate

1. Insert hinge tabs on foot plate into holes in the frame.

2. Lower foot plate.
