Removing and Installing Mower Deck Drive Belt Shields (60 and 72 in. Side Discharge)

CAUTION: Avoid injury! Help prevent serious personal injury. Do not operate the mower without the belt shields installed.

Removing Belt Shields

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Lower mower deck to the lowest cutting height position.

3.

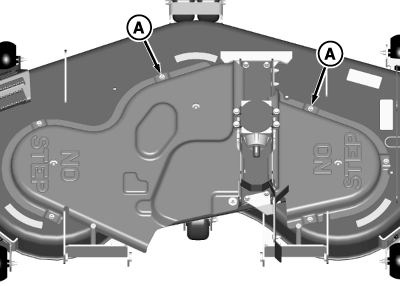

   TCT011551-UN-29JUL14

   Picture Note: 60 in. deck shown.

   Remove seven nuts and washers (A).

---




4. Remove belt shields.

   • Lift corner of belt shield from drilled stud (B). Move shield to clear head pins (C).



Installing Belt Shields

1. Install belt shields.

   • Move shield to engage head pins (C) and drilled stud (B).



2. Install belt shield locking rings (A).
