Replacing Mower Deck Drive Belt (72 in. Side Discharge)

CAUTION: Avoid injury! Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.


Removing Deck Drive Belt

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. Lower mower deck to the lowest cutting height position.

  3. TCT011553
    TCT011553-UN-29JUL14

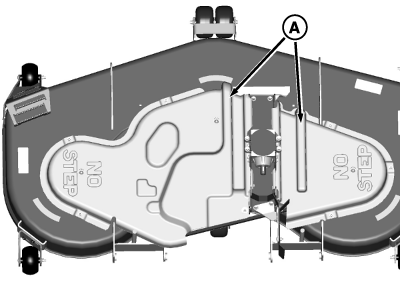

    Remove belt shields (A).


  4. Remove foot plate.

  5. TCT011554
    TCT011554-UN-29JUL14

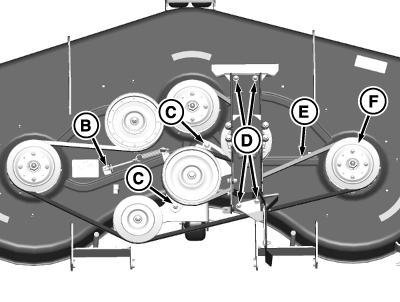

    Remove nut (B).


  6. Loosen nuts (C). Do not remove.

  7. Remove four lock nuts and cap screws (D) holding mower deck gear box bracket to frame.

  8. CAUTION: Avoid injury! Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

    Remove belt (E) from sheave (F) and remove bracket from mower deck.


Belt Installation

  1. Loosen belt tension arm and remove hardware from mower deck gearbox bracket as shown in “Removing Deck Drive Belt”.

  2. TCAL43841
    TCAL43841-UN-21MAR13

    Route drive belt (A) around mower deck sheaves as shown.


  3. TCAL43842
    TCAL43842-UN-21MAR13

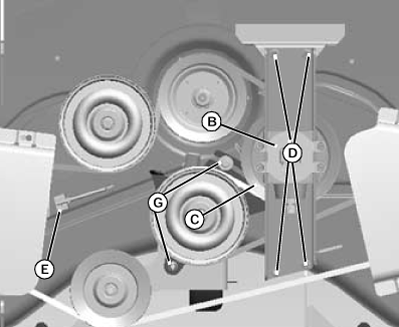

    Raise the gearbox (B) and slide the drive belt under sheave (C). Wrap belt around gear box drive sheave.


  4. Install gearbox bracket with four cap screws and washers (D).

  5. Install nut (E).

  6. NOTE: Spring length is 12.5 cm (4.9 in.) inside of hooks (F).

    Adjust tension for mower deck drive belt, and tighten tension bracket mounting cap screws (G).

  7. Install foot plate.

  8. Install belt shields.
