Replacing Mower Deck Drive Belt (60 in. Rear Discharge)


Removing Deck Drive Belt

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Lower mower deck to the lowest cutting height position.

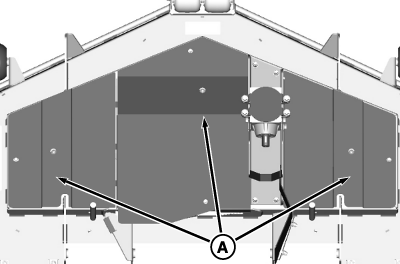

  3. TCT011555
    TCT011555-UN-31JUL14

    Remove foot plate.


  4. Remove mower deck belt shields (A).

  5. CAUTION: Avoid injury! Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

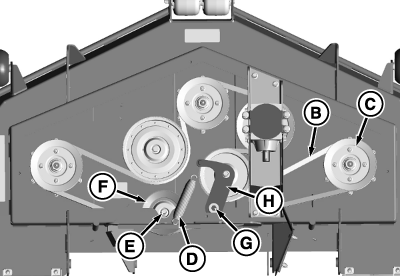

    TCT011556
    TCT011556-UN-31JUL14

    Remove belt (B) from sheave (C).


  6. CAUTION: Avoid injury! Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.

    Remove tension spring (D) from mower deck at the frame side.

  7. Remove bolt (E) and remove sheave (F).

  8. Remove bolt (G).

  9. Remove tension bracket (H).

  10. Remove belt.


Belt Installation

  1. Remove belt tension bracket.

  2. TCAL43846
    TCAL43846-UN-21MAR13

    Route drive belt (A) around mower deck sheaves as shown but not around sheave (B).


  3. Repeat steps 3—10 in opposite order.
