Replacing Mower Deck Drive Belt (60 in. Side Discharge)

Removing Deck Drive Belt

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Lower mower deck to the lowest cutting height position.

3.

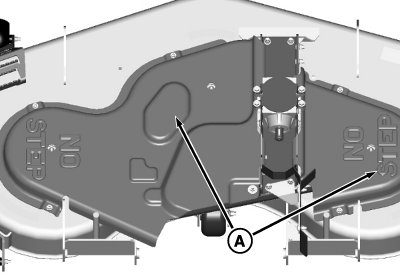

   TCT011557-UN-31JUL14

   Remove belt shields (A).

---




4. Remove foot plate.

5. CAUTION: Avoid injury! Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

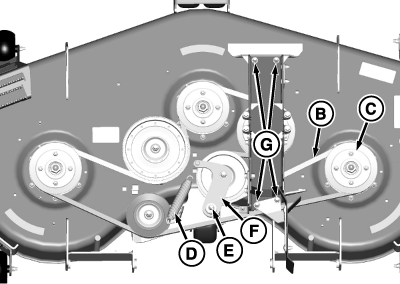

   TCT011558-UN-31JUL14

   Remove belt (B) from sheave (C).

---




6. CAUTION: Avoid injury! Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.

   Remove tension spring (D) from mower deck at the rear side.

7. Remove bolt (E) and remove tension bracket (F).

8. Remove four lock nuts and cap screws (G) holding mower deck gearbox to frame.

9. Remove gearbox bracket assembly.

10. Remove belt.

Belt Installation

1. Remove complete tension bracket assembly and remove mower deck gearbox as shown in “Removing Deck Drive Belt”.

2.

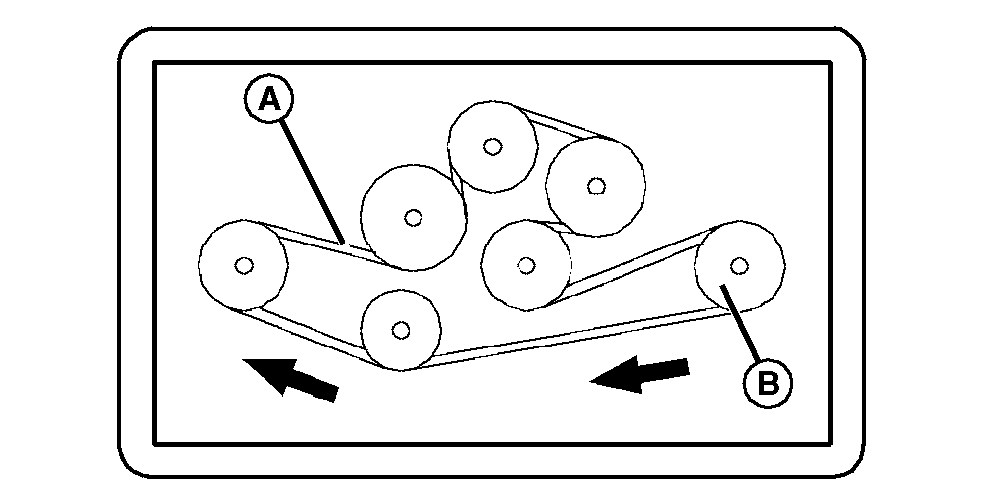

   TCAL43849-UN-21MAR13

   Route drive belt (A) around mower deck sheaves as shown but not around sheave (B).

---




3.

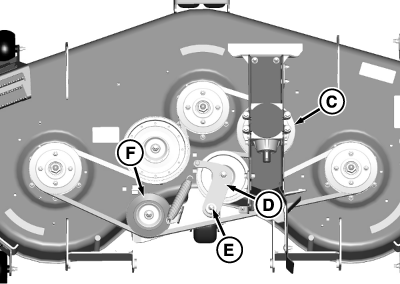

   TCT011559-UN-31JUL14

   Wrap the drive belt around the gearbox drive sheave (C) and install gearbox bracket onto mower deck.

---




4. Install tension bracket (D) and mounting bolt (E).

5. IMPORTANT: Avoid damage! Be sure sheave (F) is pushed forward in its utmost position.

   Wrap belt around sheave (B).

6. Adjust tension for mower deck drive belt.

7. Install foot plate.

8. Install belt shields.
