Lubricating Mower Deck Push Arms

TCT011472-UN-29JUL14

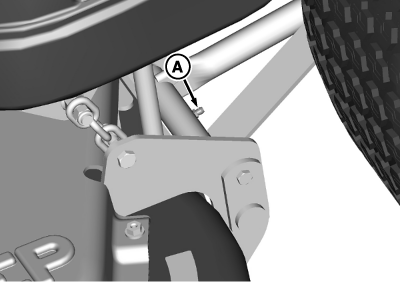

• Lubricate two push arm grease fittings (A), one located on each side of the machine with John Deere Multi-Purpose SD Polyurea Grease or an equivalent.
