Adjusting Mower Deck Drive Belt Tension (72 in. Side Discharge)

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. Remove belt shields.

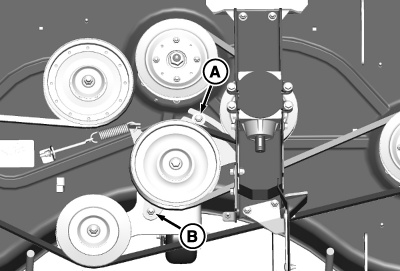

  3. TCT011552
    TCT011552-UN-29JUL14

    Loosen nuts (A) and (B).

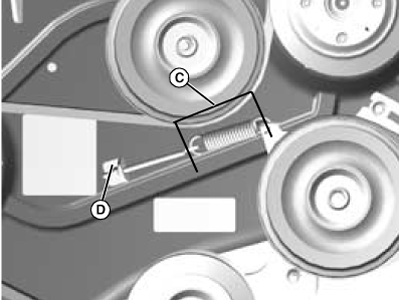

  4. TCAL43836
    TCAL43836-UN-21MAR13

    Measure length of belt tension spring (C) from hook to hook. Overall length should be 125 mm (4.9 in.) inside hooks.


  5. Adjust nut (D) until length of belt tension spring is correct.

  6. Tighten nuts (A) and (B).

  7. Install belt shields.
