Raising and Lowering Thigh Pad

  1. Park machine safely. (See Parking Safely in the Safety section.)

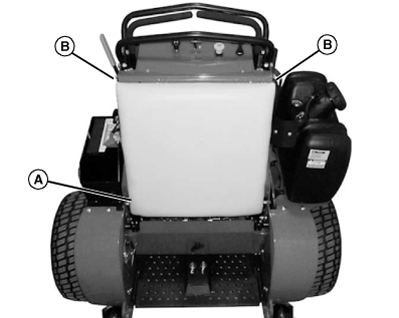

  2. TCAL43596
    TCAL43596-UN-26MAR13

    Lift up on bottom portion of thigh pad (A), allowing it to swivel upward on hinges (B).


  3. Push down on thigh pad (A), allowing it to swivel downward on hinges (B).

BB87125,0001441-19-20130708
