Adjusting Operator Platform Suspension

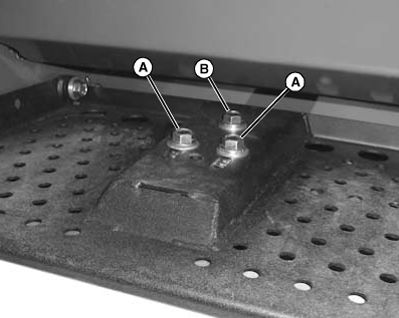

NOTE: Operator platform suspension is adjusted at the factory. If the setting is not satisfactory, the springs and cap screws (A) can be moved from the forward position.

Both cap screws must be positioned similarly, with neither cap screw more forward or rearward than the other.

An optional forth spring and cap screw (C) can be added for additional stiffness. The third spring and cap screw (B) and the optional forth spring and cap screw (C) are not adjustable.

TCAL43597-UN-26MAR13

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Loosen both cap screws (A) just enough to slide the springs and cap screws. If loosened too much, the nut may fall off and the operator platform will have to be removed to reinstall the nut.

3. Slide springs and cap screws (A) forward or rearward as needed;

   • Slide springs and cap screws forward for less stiffness.
   • Slide springs and cap screws rearward for more stiffness.



4. Tighten cap screws with an impact wrench. If tightened with a hand wrench, the nut may spin.
